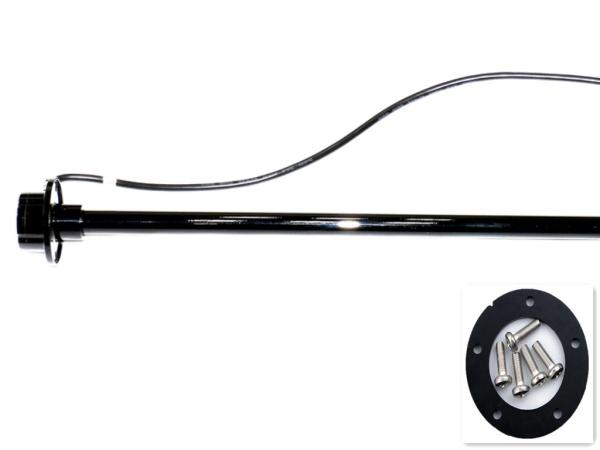

Cuttable IP66 0.4W Fuel Level Sensor For Trucks/Logistics Vehicle With GPS Connector
CLS2 Capacitor motor oil level sensor combined capacitor sensor and liquid level sensor.The product not only contain the features of high precision measurement and maintenance-free, at the same time it doesn't influenced by temperature and medium.It can be automatically measuring error caused by different temperature or medium for precise compensation,achieving the purpose of accurate measurement.
Technical features:
| Examination area: | 100~1000mm |
| Resolution ratio: | 0.10% |
| Measuring accuracy: | 0.10% |
| The maximal error of measure: | 1mm |
| Heat-resistant: | -40~150 |
| Diameter: | Φ18mm |
| Output signal: | 4~20mA, 0~5V, RS485, RS232, CAN bus |
| Voltage supply: | DC7~42V |
| Rated supply: | 0.1W |
| Fixed type: | Screw installation M20X1.5 OR Flange mounting |
| Pressure range: | -0.1MPa ~ 0.1 Mpa |
| Ambient temperature: | -40~85℃ |
Cuttable IP66 0.4W Fuel Level Sensor For Trucks/Logistics Vehicle With GPS Connector
The entire sensor machine doesn't contain any elasticity or moving parts.Impact resistance, maintenance-free, long service life, easy installation,can be installed in various occasions.Accurate measure for gasoline, diesel oil, hydraulic oil level and other various weak corrosive liquid level .
Instruction
definition of the output line
Interface output line use 6 core cable, connecting definition:
0~5V output [CLS2A]:
Black line connect ground wire Red line connect positive power
White line 0~5V voltage signal output,connect voltage signal wire Yellow line empty fuel tank use only
Green line full fuel tank use only
| RS232 | output [CLS2C] |
| Black line | connect ground wire |
| Red line | connect positive power |
| White line | RXD input, connect car RS232 TXD |
| Blue line | TXD output, connect car RS232 RXD |
| Yellow line | empty fuel tank use only |
| Green line | full fuel tank use only |
Cuttable IP66 0.4W Fuel Level Sensor For Trucks/Logistics Vehicle With GPS Connector
GPS Tracker Applications:
GPS Tracker Shipping:
FAQ:
Do you have one GPS Tracker device that supports the fuel sensor?
Yes, all professional types of GPS trackers including V2E have the support of this type of fuel sensors.
How can I buy it?
We accept T/T, Western Union, and Paypal after payment cleared. then we will send goods to you.
What is your WhatsApp?
My WhatsApp is +8618673367060
